FAB360 - HVAC

FAB360 - HVAC

The only fabrication database with unlocked certified fabrication content on the market. FAB360 - HVAC is an innovative, enhanced solution for platforms that give users peace of mind when it comes to generating accurate and standardized models with optimized efficiency.

Unlocked and ready to use on CADmep and Revit projects.

Database & Content (Included Services)

  • HPSA – High Pressure Supply Air
  • LPMUA – Low Pressure Make-Up Air
  • LPRA – Low Pressure Return Air
  • LPSA – Low Pressure Supply Ai
  • MPMUA – Medium Pressure Make-Up Air
  • MPRA – Medium Pressure Return Air
  • MPSA – Medium Pressure Supply Air
  • OAI – Outside Air Intake
  • SPD– Stairwell Pressurization Duct
  • BF– Boiler Flue
  • DE– Dryer Exhaust
  • TE– Toilet Exhaust
  • RA– Relief Air
  • GD– Grease Duct
  • GE– General Exhaust Air
  • IEA– Isolation Exhaust Air

Standards & Accuracy

  • Built with SMACNA Standards
  • Pre-Configured Button mapping

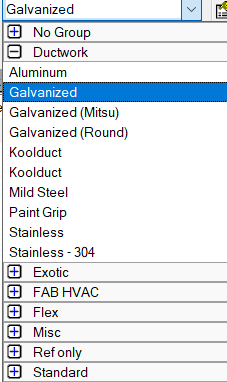

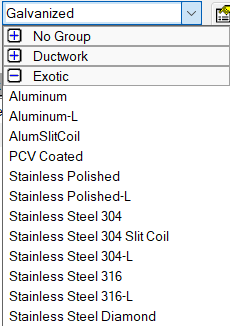

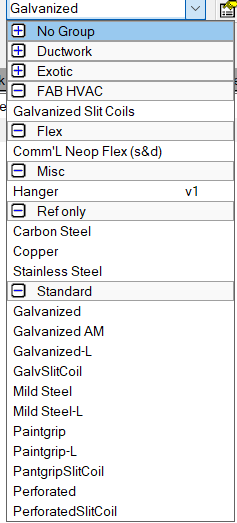

  • Materials and Specifications

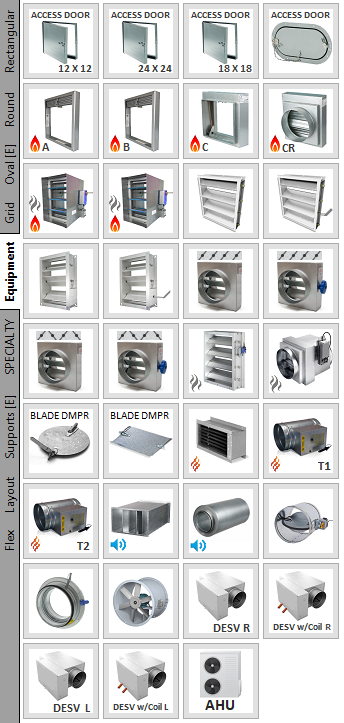

  • HVAC Equipment

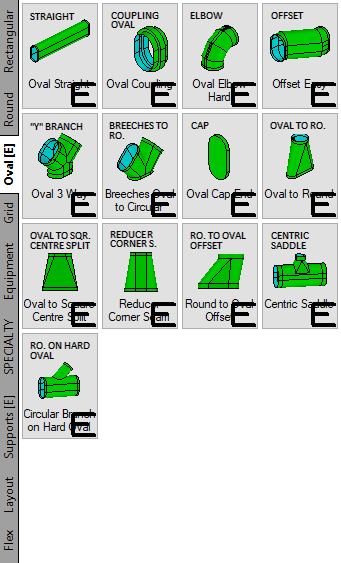

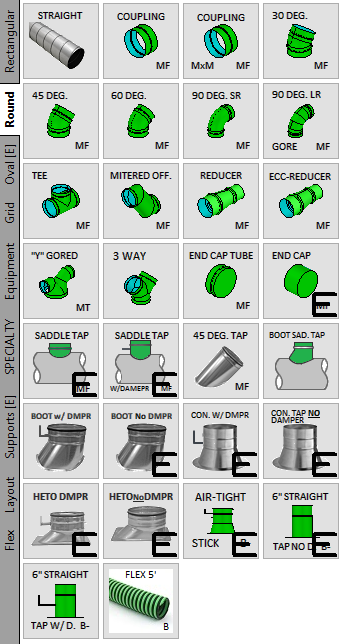

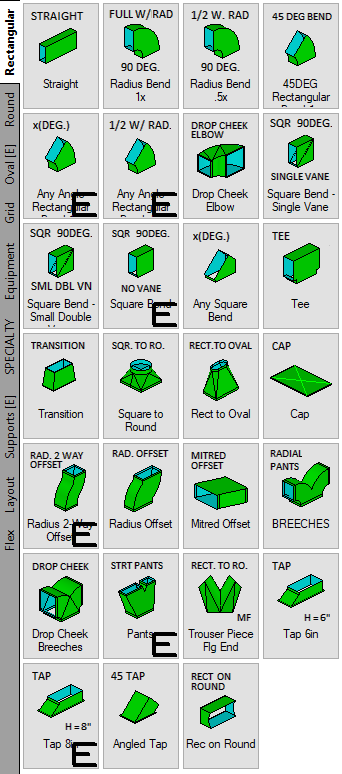

  • Rectangular / Round / Oval
  • SMACNA Labor and installation rates

Compatibility & Organization

  • Autodesk CADmep and Revit ready
  • Built to support Autodesk’s MEPCE Web Application
  • Improved database organization
  • Supports expandability and future growth

Support & Updates

  • Periodic library and standards improvements
  • Organized for reliable downstream use
  • Setup and usage support available
Request Demo Get Support
View full details
